Product Description
Color steel tile forming machine is a mechanical equipment specially used for producing color steel tiles. It combines advanced mechanical manufacturing technology with automation control concepts, and can transform various metal coils, such as galvanized steel plates, color-coated steel plates, etc., into color steel tiles with various shapes and complete specifications through a series of process processing. This equipment is widely used in various construction fields, providing high-quality materials for covering building roofs and walls.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1000mm |
| Roller Stations | 17Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15m/min |
| Total Power | 5.5+5.5KW |
| Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
In the production process, metal sheets are usually supplied in the form of coils. The primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
It generates stable and controllable hydraulic pressure to drive the pressing rollers, cutting devices and other actions.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
In the conveying process, the feeding table accurately controls the conveying speed and position of the plate, and works closely with the subsequent leveling device, forming equipment, etc. It feeds the plate into the leveling process at a stable speed, ensuring that the plate is in good conveying condition before being leveled, laying the foundation for high-quality leveling operations.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The reliability and durability of the cutter are also important factors affecting production stability.
|
|

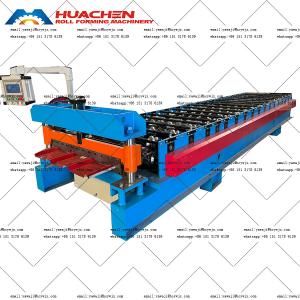

Best Selling Steel Tile Roof Roll Forming Machine Images
|
